Large-scale equipment for your high-pressure process

High-pressure vessels are integral components of processes in the petrochemical and chemical industries. MAN Energy Solutions supplies hydrocrackers, HDPE reactors and other specialist vessels made from high-grade materials. Our high-pressure vessels weigh up to 1,800 mt featuring weld overlay or made from special materials with a wall thickness of up to 350 mm: MAN Energy Solutions brings outstanding experience and expertise to the market, for turnarounds or brand-new plants.
Scroll down

Made to withstand high pressure - our heavy-duty vessels

Hydrocracker

The heart of the hydrocracking unit.

  • Up to 70 m in length, 1,800 mt in unit weight
  • Optimized for assembly
  • High temperature chromium steel (e.g. 2 ¼ Cr1Mo, 2 ¼ Cr1Mo ¼ V)
  • Stainless steel cladding (weld overlay)
  • PWHT in one piece

Hydrotreater

Fine-tune your refinery.

  • Up to 70 m in length, 1,800 mt in unit weight
  • Optimized for assembly
  • High temperature chromium steel (e.g. 2 ¼ Cr1Mo, 2 ¼ Cr1Mo ¼ V)
  • Stainless steel cladding (weld overlay)
  • PWHT in one piece

Others

Vessels made of special materials.

  • Made from materials such as zirconium or titanium
  • Desulphurization reactors
  • Duplex steel
  • HDPE reactors
  • High-pressure vessels for low-temperature natural gas liquefaction
  • Up to 70 m in length, 1,800 mt in unit weight

MAN Energy Solutions expertise for turnarounds or brand-new plants



High-pressure vessels from the experts

Refinery processes are highly complex and costly. Demand for refined products worldwide is on the rise. Your equipment needs to be reliable, efficient and cost-effective to make sure your business is thriving. MAN Energy Solutions has the outstanding expertise and large-scale production facilities needed to make your operations competitive and profitable. For turnarounds or new plants, we manufacture in our workshops on the River Danube and ship directly from there: Vessels weighing up to 1,800 mt featuring a wall thickness of 50 mm to 350 mm. Vessels made from special materials such as zirconizm, CrMO, CrMoV, 20MnMoNi45 or other high-grade materials. Our weld overlay cladding guarantees extra durability.

Get everything you need from one trusted source

MAN Energy Solutions offers far more than just supplying the hardware you require. We act as a single-source solution provider or consult on individual stages in strategic planning.

Customers worldwide are working with us to improve their business. Together we make sure their technology is fit for the market or solve tricky steps such as the safe transportation of extremely heavy and large equipment. We provide everything from feasibility studies to the execution of turnarounds.

We have wide experience with all main licensors, are experienced in working with high temperature chromium steel and will design your unique pressure equipment if needed.

 We offer:

  • Studies
  • Engineering
  • Shutdown planning
  • Shop fabrication
  • Logistics
  • Assembly on site
  • Execution of revamps and turnarounds
  • Support during commissioning
Talk to our experts
Weighty
1800
mt
maximum weight of our vessels which we ship directly from our workshop
Strong
350
bar
pressure our vessels can withstand
Thick
350
mm
maximum wall thickness of our high-pressure vessels

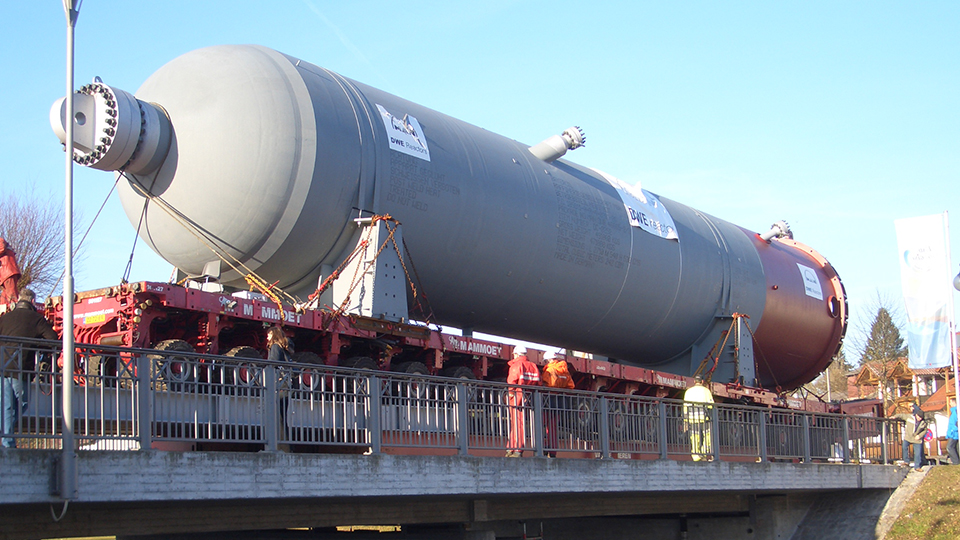

Two (2) hydrocrackers

Hydrocracking reactor, Bayernoil, Neustadt, Germany



Testimage-720-405
Diameter:4,000 mm4,000 mm
Wall thickness:217 mm
+ 4.5 mm weld overlay
209 mm
Length:29,100 mm27,600 mm
Weight:525 mt475 mt
Operating pressure:145.5 bar140.5 bar
Operating temperature:454 °C  454 °C 
Material:

12 CrMo 9 10

Type 347



base material 

weld overlay
